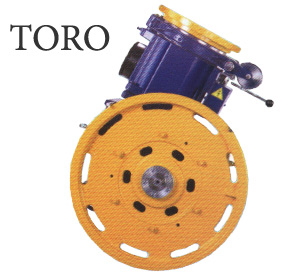

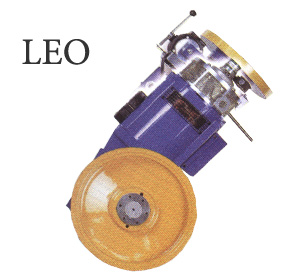

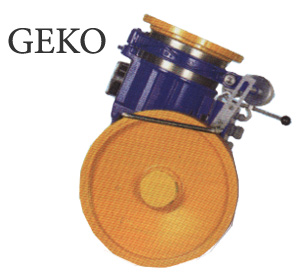

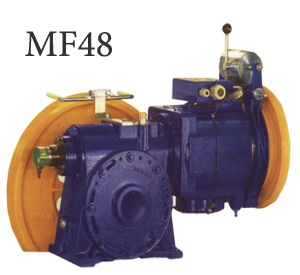

محركات مصاعد

kg 3100 Max. static load
1/60 - 1/47 - 2/71 - 3/56 Ratios
3.5 ------> 7.3 kw sync Powers range at 4/16 Poles
2.9 ------> 4.0 kw sync Powers range at 6/24 Poles
3.3 ------> 11.4 kw sync Powers range vvvf at 4 Poles
3.8 L Oil capacity
kg 3000 Max. static load
1/7 - 1/55 - 1/45 - 2/71 - 2/57 - 3/47 Ratios
3.5 ------> 5.5 kw sync Powers range at 4/16 Poles
2.9 ------> 3.3 kw sync Powers range at 6/24 Poles
3.3 ------> 11 kw sync Powers range vvvf at 4 Poles



kg 4200 Max. static load
1/61 - 1/49 - 2/53 - 3/47 Ratios
3.5 ------> 11 kw sync Powers range at 4/16 Poles
2.9 ------> 6.6 kw sync Powers range at 6/24 Poles
3.3 ------> 20.6 kw sync Powers range vvvf at 4 Poles
kg 2400 Max. static load
1/71 - 1/55 - 1/45 - 2/57 Ratios
3.5 ------> 4.9 kw sync Powers range at 4/16 Poles
2.9 ------> 3.3 kw sync Powers range at 6/24 Poles
3.3 ------> 5.9 kw sync Powers range vvvf at 4 Poles
